Innovation Lift ILS 1K

By Innovation Lift · Official stockist

A Swedish-built 1000 kg platform lift for public and industrial buildings — 55 platform sizes up to 1400 × 2500 mm, for wheelchairs, beds, pallets and stock.

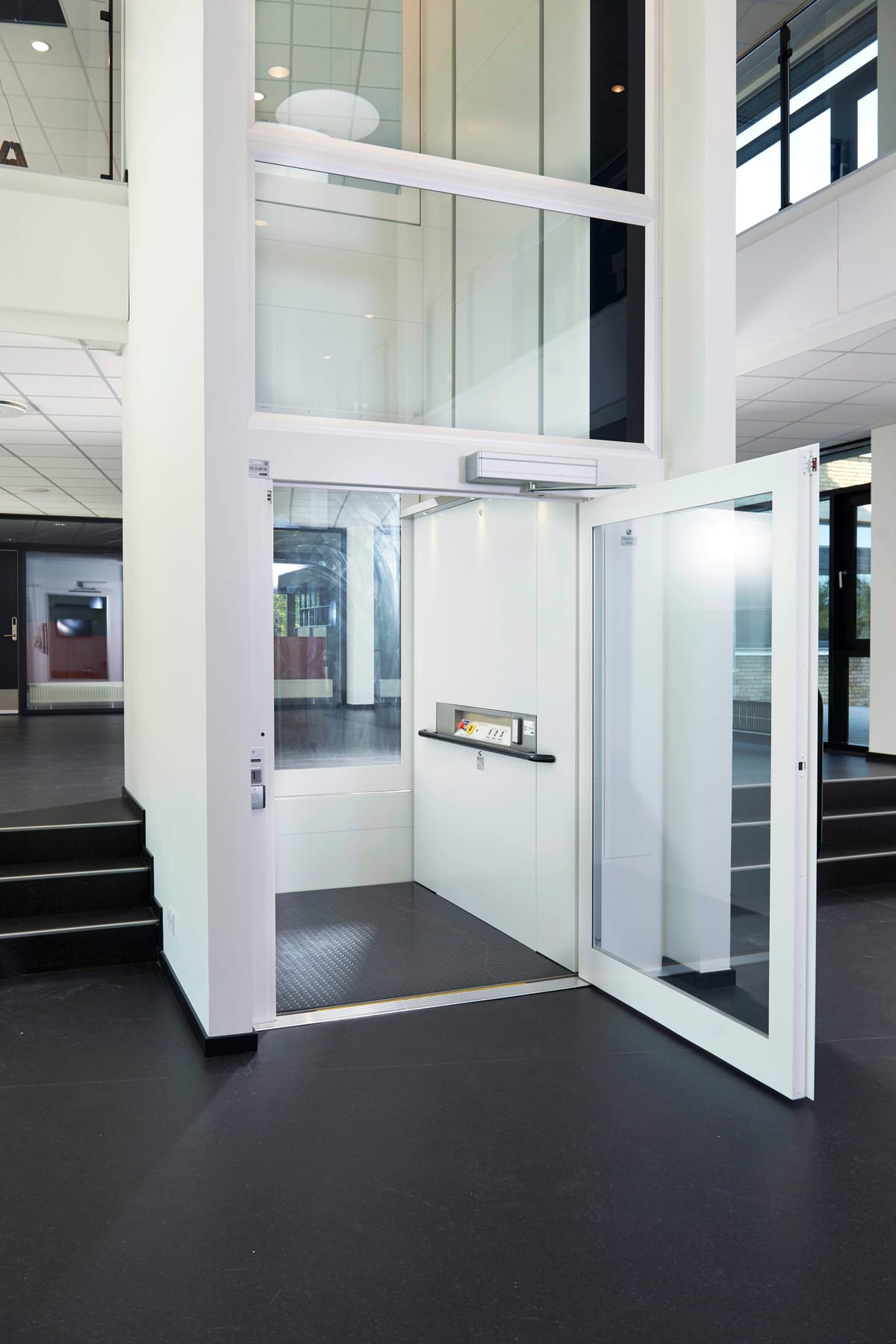

Innovation Lift ILS 1K platform lift in a commercial atrium

Heavy-duty capacity, Scandinavian design

The ILS 1K takes everything that makes the ILS 05K a smart buy — Swedish build quality, low installation cost, quick 2–4 day fitting — and scales it up to a 1000 kg load on a platform up to 1400 × 2500 mm. That makes it equally at home carrying a wheelchair user, a hospital bed, a pallet or a stock cage, which is why it's a favourite for public and industrial buildings.

We supply, install and maintain the ILS 1K across the North East, working directly with facilities managers, architects and contractors.

Why it stands out

  • Serious capacity — 1000 kg across 55 platform sizes, with a full-height platform back and integrated lighting.

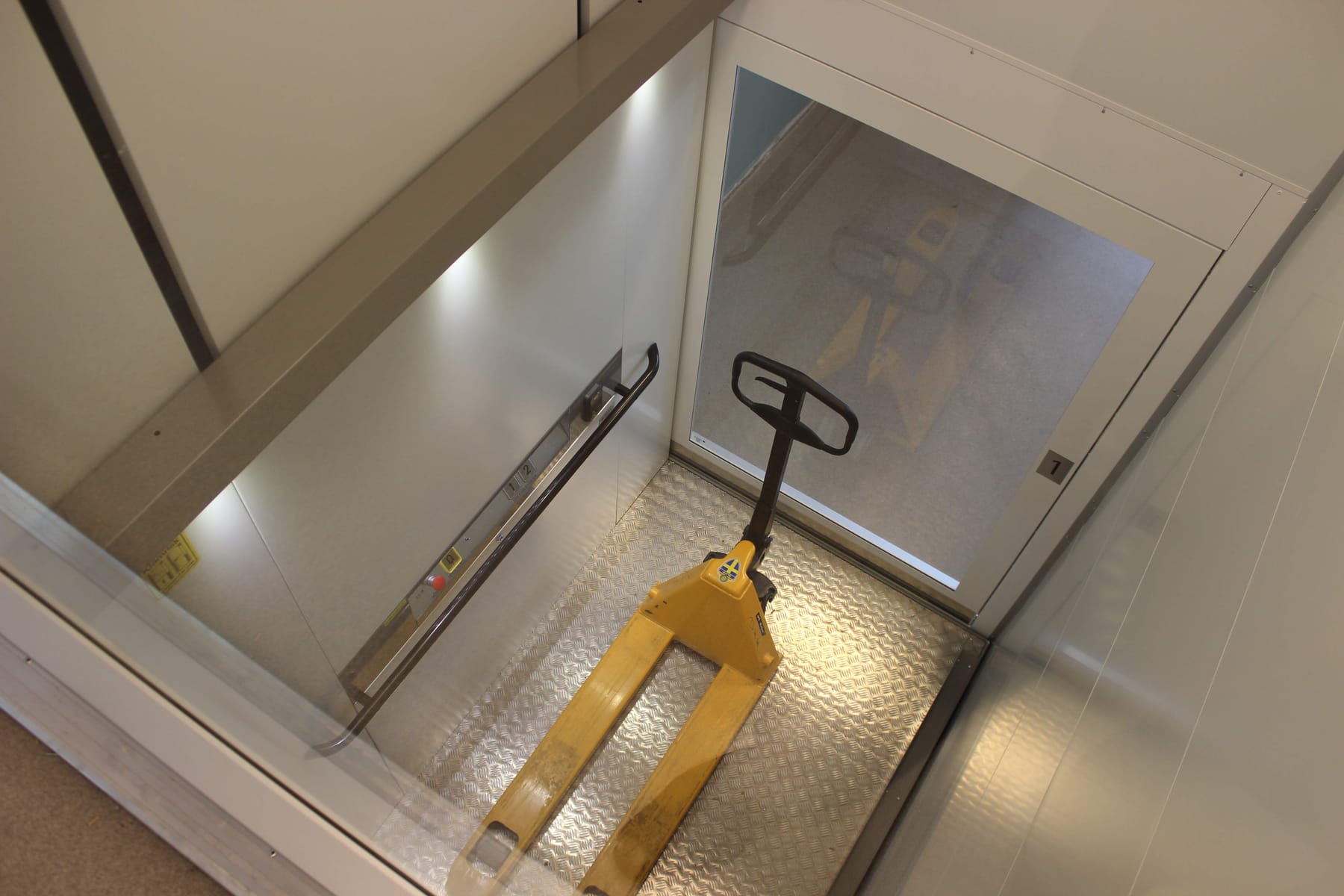

  • One lift, many jobs — hospitals and care homes (beds), schools and arenas (crowds), workshops and furniture stores (stock and pallets).
  • Fits the building — the widest choice of platform sizes in its class and a shallow 110 mm pit keep builder's work to a minimum.
  • Installed in 2–4 days — the same "plug and play" approach as the rest of the ILS range.
  • Loads with ease — wide fully glazed doors as standard, EI60 fire-rated where needed, on up to three sides.
  • Swedish-made to MD 2006/42/EC.

Ideal for

Hospitals and care homes, schools and arenas, workshops, warehouses and retail — any building moving people and heavy loads between floors. For a freestanding cargo lift with dual passenger certification, also compare the Barduva VB1000.

Request a quote — free site surveys and specification support for trade and commercial clients.

Specification
Capacity 1000 kg
Travel height Up to 13 m — 5 stops
Speed 0.15 m/s
Pit 110 mm
Platform sizes 55 standard sizes, up to 1400 × 2500 mm
Platform back Full-height, with integrated lighting
Drive Screw-and-nut, 4 kW, PLC control
Doors Wide fully glazed (standard) or EI60 fire-rated, on up to 3 sides
Shaft Sandwich panels in white, or glazed — any RAL colour on request
Accessibility Tactile and Braille buttons throughout; one-touch door call
Backup Battery emergency lowering included as standard
Installation Just 2–4 days — "plug and play"
Environment Indoor
Compliance MD 2006/42/EC — manufactured in Sweden
